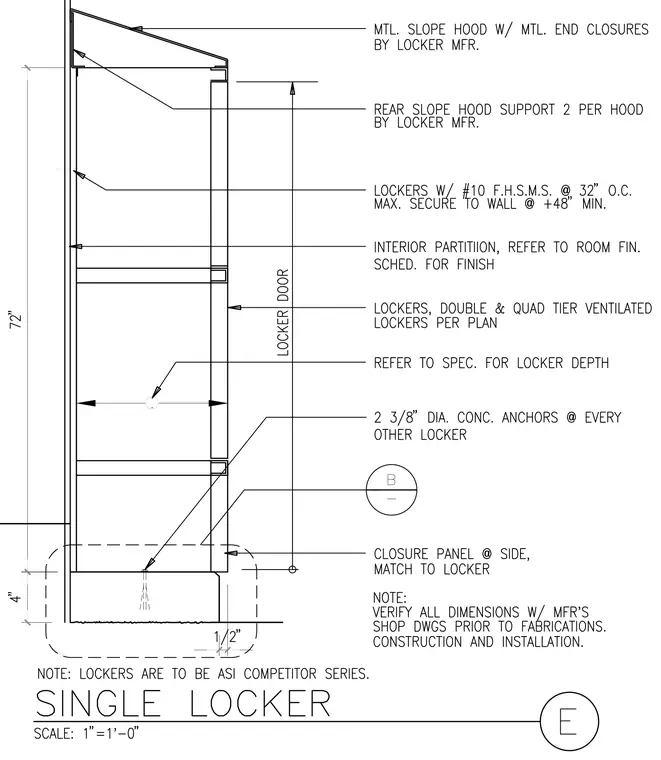

Double and quad tier ventilated lockers secure to the interior partition using number ten flat head sheet metal screws spaced at thirty-two inches on center maximum and secured to the wall at forty-eight inches minimum. Two three-eighths inch diameter concrete anchors secure the unit at every other locker. A metal slope hood with metal end closures provided by the locker manufacturer mounts to the top with two rear slope hood supports per hood. A closure panel matches the locker at the side, and a four-inch base sits above the floor finish.
