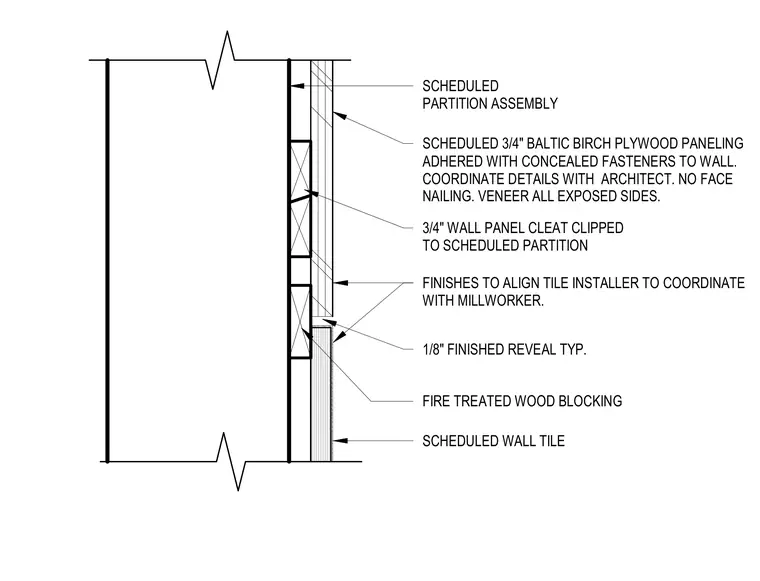

Scheduled three-quarter-inch Baltic birch plywood paneling is adhered with concealed fasteners to the wall without face nailing and with veneer on all exposed sides. A three-quarter-inch wall panel cleat clips the paneling to the scheduled partition assembly backed by fire-treated wood blocking. A one-eighth-inch finished reveal separates the wood paneling from the scheduled wall tile finish, requiring coordination between the tile installer and the millworker to align finishes.
1/8" FINISHED REVEAL TYP. SCHEDULED 3/4" BALTIC BIRCH PLYWOOD PANELING ADHERED WITH CONCEALED FASTENERS TO WALL. COORDINATE DETAILS WITH ARCHITECT. NO FACE NAILING. VENEER ALL EXPOSED SIDES. 3/4" WALL PANEL CLEAT CLIPPED TO SCHEDULED PARTITION SCHEDULED PARTITION ASSEMBLY FIRE TREATED WOOD BLOCKING SCHEDULED WALL TILE FINISHES TO ALIGN TILE INSTALLER TO COORDINATE WITH MILLWORKER.
