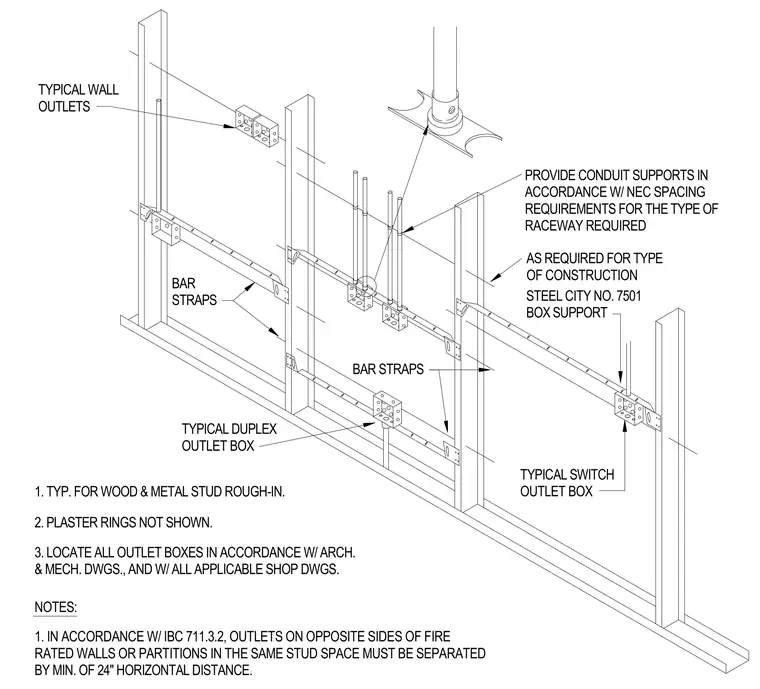

Typical wall outlets and switch outlet boxes are mounted within wood and metal stud framing using Steel City number 7501 box supports and horizontal bar straps. Conduit supports are provided in accordance with National Electrical Code spacing requirements for the type of raceway required. Plaster rings are omitted from this view. Outlet boxes on opposite sides of fire-rated walls or partitions within the same stud space are separated by a minimum of twenty-four inches horizontally in accordance with international building code requirements.
BY MIN. OF 24" HORIZONTAL DISTANCE. RATED WALLS OR PARTITIONS IN THE SAME STUD SPACE MUST BE SEPARATED 1. IN ACCORDANCE W/ IBC 711.3.2, OUTLETS ON OPPOSITE SIDES OF FIRE NOTES: 1. TYP. FOR WOOD & METAL STUD ROUGH&IN. 3. LOCATE ALL OUTLET BOXES IN ACCORDANCE W/ ARCH. & MECH. DWGS., AND W/ ALL APPLICABLE SHOP DWGS. 2. PLASTER RINGS NOT SHOWN. TYPICAL SWITCH STEEL CITY NO. 7501 OF CONSTRUCTION AS REQUIRED FOR TYPE RACEWAY REQUIRED REQUIREMENTS FOR THE TYPE OF ACCORDANCE W/ NEC SPACING PROVIDE CONDUIT SUPPORTS IN TYPICAL DUPLEX OUTLET BOX TYPICAL WALL OUTLETS STRAPS BAR BAR STRAPS OUTLET BOX BOX SUPPORT
