A three-quarter-inch diameter galvanized cane bolt thirty inches long drops into a one-inch diameter steel sleeve embedded within a seven-inch diameter concrete footing. A one-and-a-half by two-and-a-half by quarter-inch thick galvanized steel plate with a one-and-a-half by half-inch opening is welded to the cane bolt, aligning with a matching latch welded to the gate frame. Three-quarter by three-sixteenth-inch thick galvanized steel frame guides are welded to the gate frame to secure the sliding rod. A half-inch diameter hole is provided in the latch for a padlock.

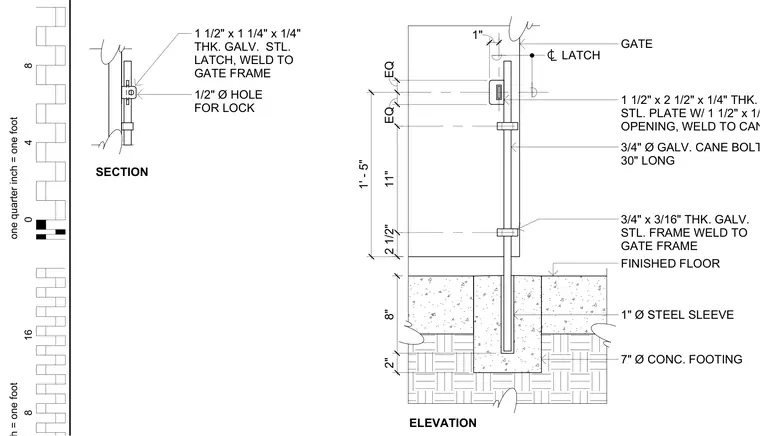

3/4" Ø GALV. CANE BOLT, 30" LONG 7" Ø CONC. FOOTING 2" 8" 1" Ø STEEL SLEEVE 2 1/2" 11" 1' - 5" LATCH FINISHED FLOOR 1 1/2" x 2 1/2" x 1/4" THK. GALV. STL. PLATE W/ 1 1/2" x 1/2" OPENING, WELD TO CANE BOLT 1 1/2" x 1 1/4" x 1/4" THK. GALV. STL. LATCH, WELD TO GATE FRAME 1/2" Ø HOLE FOR LOCK 3/4" x 3/16" THK. GALV. STL. FRAME WELD TO GATE FRAME EQ EQ ELEVATION 1" GATE SECTION 16 8 0 4 8 one quarter inch = one foot
