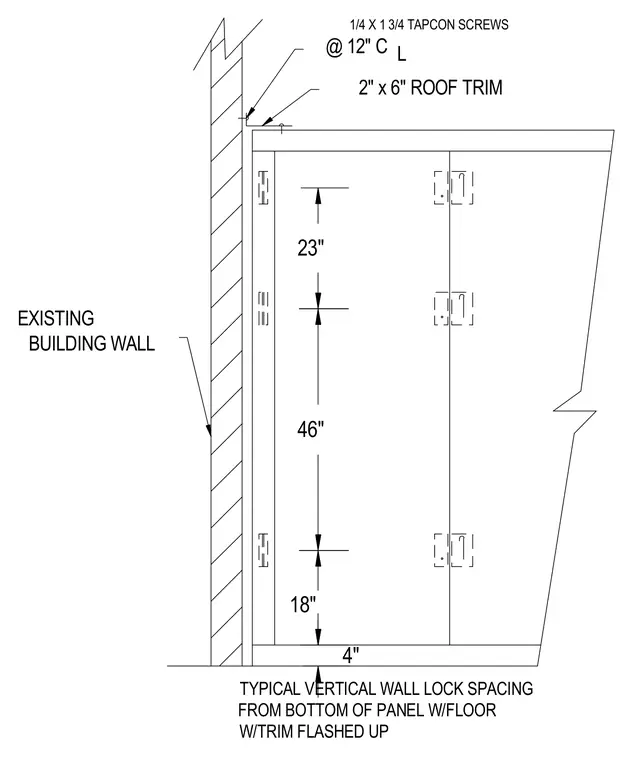

A 2 inch by 6 inch roof trim is fastened to an existing building wall using 1/4 inch by 1 3/4 inch Tapcon screws spaced at 12 inches on center. The vertical wall lock spacing from the bottom of the panel includes measured intervals of 4 inches, 18 inches, 46 inches, and 23 inches. The trim is flashed up against the existing wall.
2" x 6" ROOF TRIM EXISTING BUILDING WALL @ 12" C L 1/4 X 1 3/4 TAPCON SCREWS TYPICAL VERTICAL WALL LOCK SPACING FROM BOTTOM OF PANEL W/FLOOR W/TRIM FLASHED UP 46" 4" 18" 23"
