A steel handrail and guardrail assembly includes a 1 1/2-inch continuous steel tubing handrail mounted to double 1/2-inch by 3-inch steel flat bar balusters at a 4'-0" maximum spacing. The handrail connects via 3/8-inch hot-dip galvanized and painted steel rods with 1/2-inch horizontal steel rods typical. The balusters anchor to 2-inch by 12-inch by 1/2-inch thick L-shaped stainless steel supports fastened with 1/2-inch diameter steel bolts with acorn caps. The top of the guardrail sits at 3'-6 1/2" and the top of the handrail sits at 2'-10".

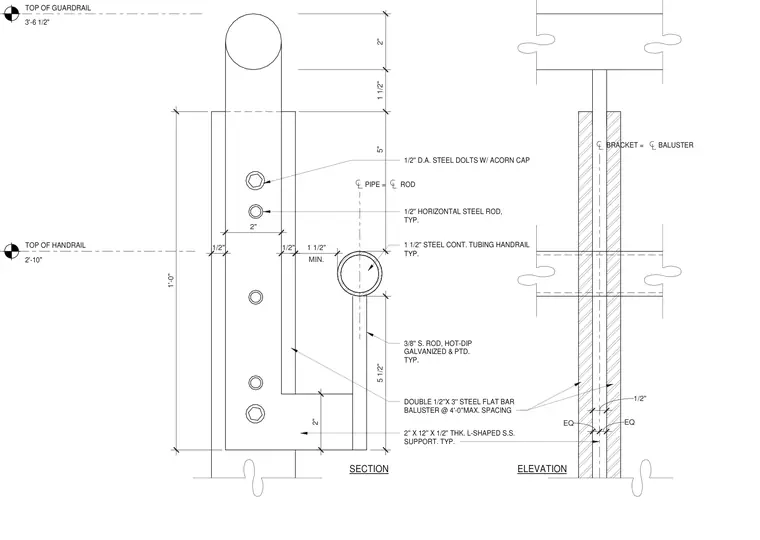

MIN. 1 1/2" 2" 5 1/2" 1/2" 1/2" 2" 1'-0 " 1/2" EQ EQ 1/2'' D.A. STEEL DOLTS W/ ACORN CAP 1/2'' HORIZONTAL STEEL ROD, TYP. 1 1/2'' STEEL CONT. TUBING HANDRAIL TYP. 3/8'' S. ROD, HOT-DIP GALVANIZED & PTD. TYP. DOUBLE 1/2''X 3'' STEEL FLAT BAR BALUSTER @ 4'-0''MAX. SPACING 2'' X 12'' X 1/2'' THK. L-SHAPED S.S. SUPPORT. TYP. PIPE = ROD BRACKET = BALUSTER SECTION ELEVATION 2" 1 1/2" 5" TOP OF GUARDRAIL 3'-6 1/2" TOP OF HANDRAIL 2'-10"
