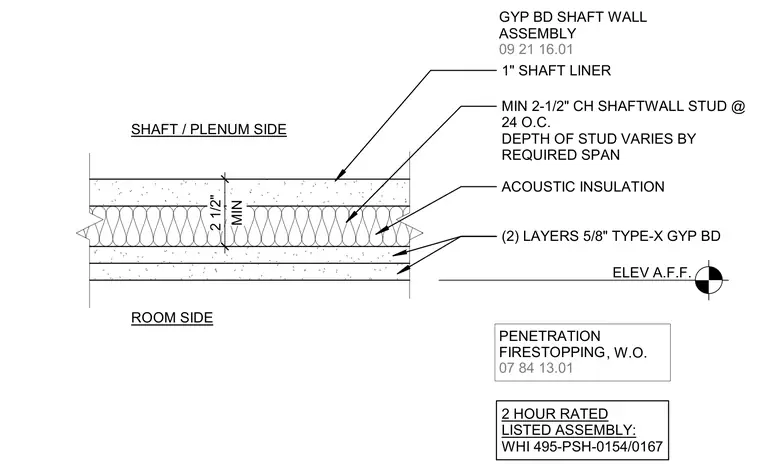

This two-hour rated horizontal shaftwall assembly consists of a minimum two-and-a-half-inch CH shaftwall stud spaced at twenty-four inches on center, with stud depth varying according to the required span. The shaft or plenum side receives a one-inch shaft liner, while the room side is finished with two layers of five-eighths-inch Type-X gypsum board over minimum two-and-a-half-inch acoustic insulation placed in the cavity.
MIN 2-1/2" CH SHAFTWALL STUD @ 24 O.C. DEPTH OF STUD VARIES BY REQUIRED SPAN SHAFT / PLENUM SIDE 1" SHAFT LINER (2) LAYERS 5/8" TYPE-X GYP BD ROOM SIDE MIN 2 1/2" ACOUSTIC INSULATION ELEV A.F.F. 2 HOUR RATED LISTED ASSEMBLY: WHI 495-PSH-0154/0167 07 84 13.01 PENETRATION FIRESTOPPING , W.O. 09 21 16.01 GYP BD SHAFT WALL ASSEMBLY
