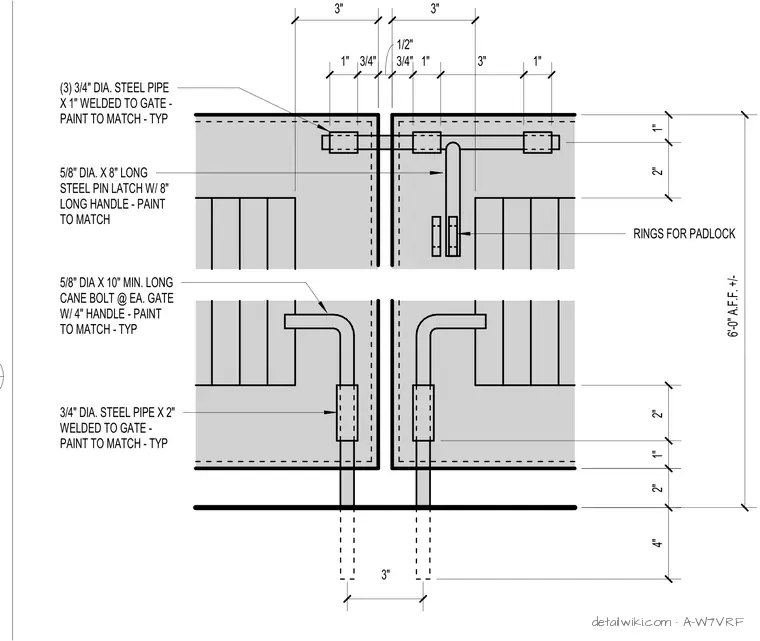

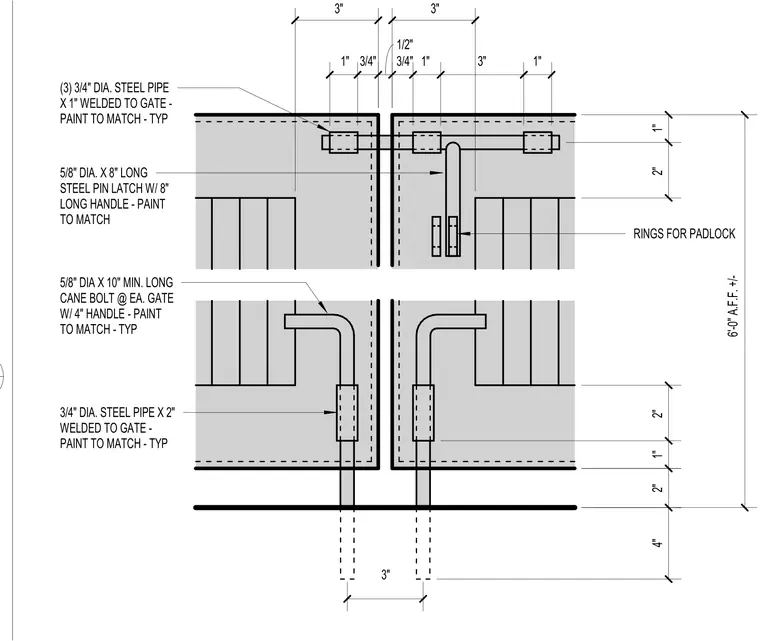

The gate assembly utilizes a five-eighths inch diameter by eight-inch long steel pin latch with an eight-inch handle, secured by three-quarter inch diameter steel pipe guides welded to the gate frame. Padlock rings are provided for security. The lower section includes a five-eighths inch diameter by ten-inch minimum length cane bolt at each gate leaf, featuring a four-inch handle. The cane bolt slides through a three-quarter inch diameter by two-inch steel pipe guide welded to the gate. All steel components are to be painted to match the gate finish, with the assembly positioned at six feet above finished floor.
Text on the drawing
3" 1" 3/4" (3) 3/4" DIA. STEEL PIPE X 1" WELDED TO GATE - PAINT TO MATCH - TYP 5/8" DIA. X 8" LONG STEEL PIN LATCH W/ 8" LONG HANDLE - PAINT TO MATCH 5/8" DIA X 10" MIN. LONG CANE BOLT @ EA. GATE W/ 4" HANDLE - PAINT TO MATCH - TYP 3" 1/2" 3/4" 1" 3" 1" RINGS FOR PADLOCK 3/4" DIA. STEEL PIPE X 2" WELDED TO GATE - PAINT TO MATCH - TYP 3" 4" 2" 1" 2" 2" 1" 6'-0" A.F.F. +/-
