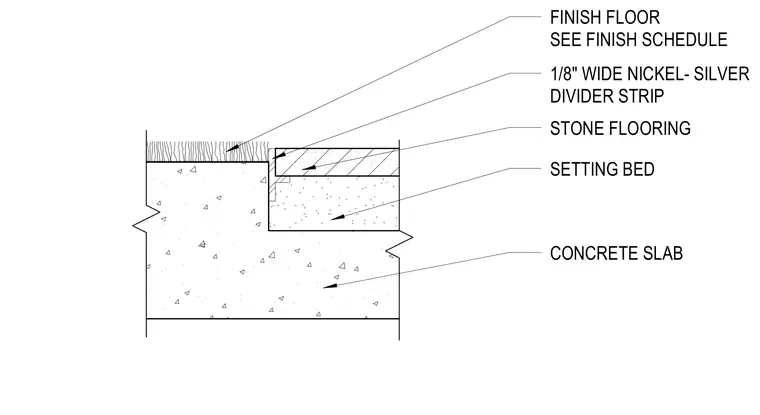

Stone flooring transitions to an adjacent finish floor over a structural concrete slab. A one-eighth inch wide nickel-silver divider strip separates the stone flooring from the alternate finish floor specified in the finish schedule. The stone flooring is supported on a setting bed recessed into the concrete slab to align finish elevations.
FINISH FLOOR SEE FINISH SCHEDULE 1/8" WIDE NICKEL- SILVER DIVIDER STRIP STONE FLOORING SETTING BED CONCRETE SLAB
