Architectural · A-W7QWB

Drinking Fountain Clearances

Elements

About this detail

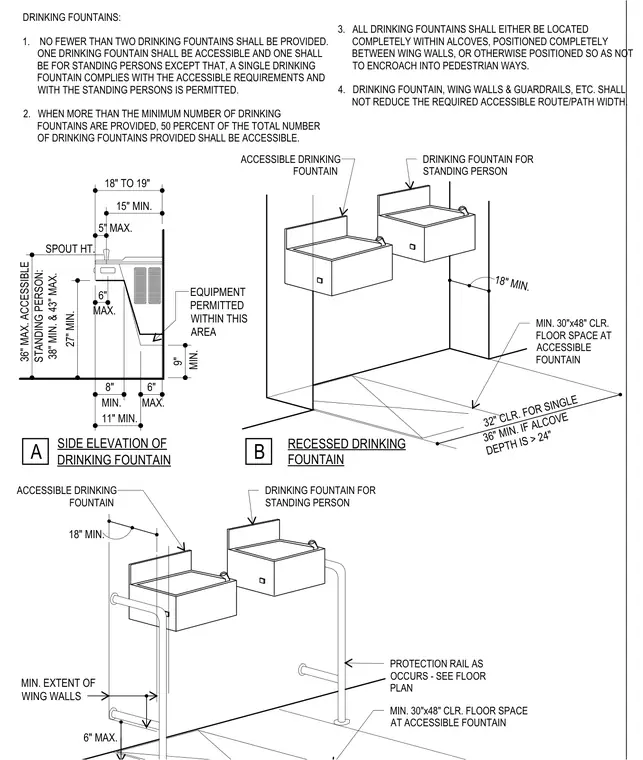

This drawing outlines dimensional requirements and mounting heights for accessible and standing drinking fountains along building corridors and accessible routes. Side elevations detail spout heights, knee clearances, toe spaces, and basin depths. Axonometric views specify clear floor spaces of thirty by forty-eight inches, alcove widths, wing wall extents, and protection rail locations. Accompanying text notes govern fountain quantities, alcove positioning, and path-of-travel clearance requirements.
