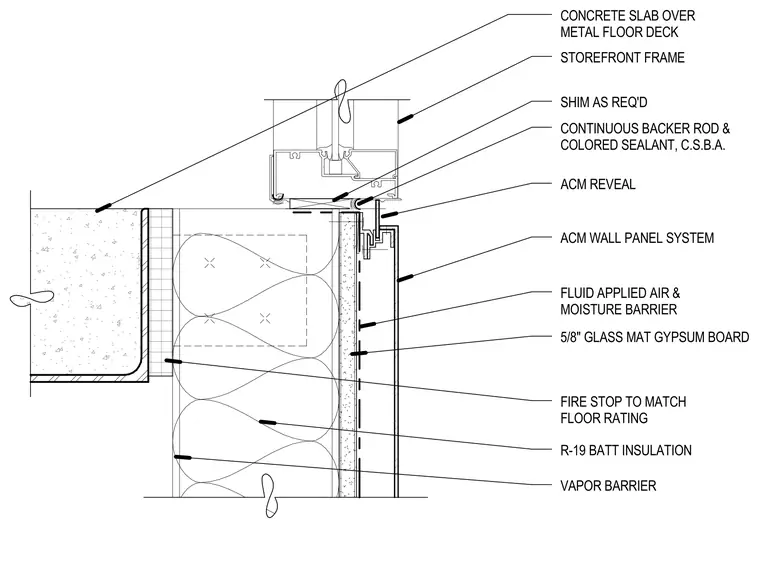

A storefront frame is supported above a concrete slab over a metal floor deck with shims as required. The joint between the storefront sill and the exterior aluminum composite material wall panel system is sealed with a continuous backer rod and colored sealant. The backup wall consists of five-eighths inch glass mat gypsum board over R-nineteen batt insulation, protected by a vapor barrier and a fluid-applied air and moisture barrier. A fire stop matching the floor rating is installed at the slab edge adjacent to the exterior wall assembly.
FLUID APPLIED AIR & MOISTURE BARRIER R-19 BATT INSULATION 5/8" GLASS MAT GYPSUM BOARD CONTINUOUS BACKER ROD & COLORED SEALANT, C.S.B.A. STOREFRONT FRAME SHIM AS REQ'D ACM REVEAL ACM WALL PANEL SYSTEM CONCRETE SLAB OVER METAL FLOOR DECK VAPOR BARRIER FIRE STOP TO MATCH FLOOR RATING
