The wood door sits on an aluminum threshold and shim above a pressure-treated wood sill plate. An EPDM gasket is placed under the sill plate, which is anchored to the concrete foundation with sill anchors and countersunk fasteners. Felt and sealant form an expansion joint beneath the threshold. The adjacent gym wood flooring assembly includes a hydronics system, insulation, felt expansion joint, flexible flashing, and a ventilated rubber base.

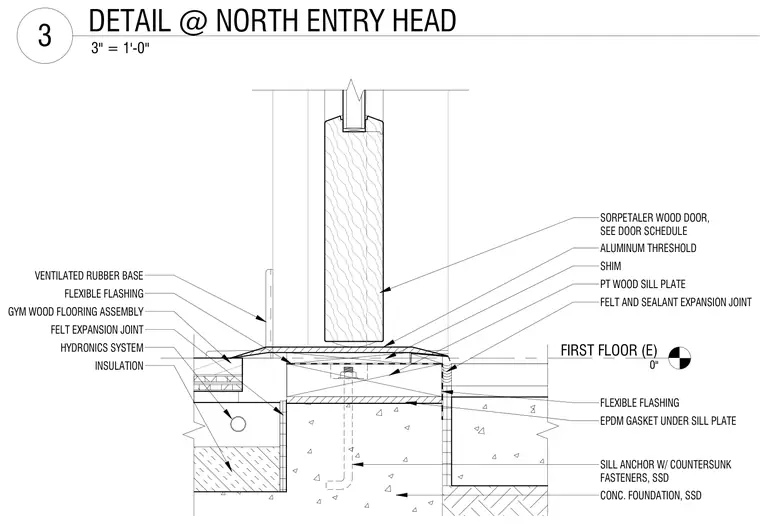

FIRST FLOOR (E) 0" SILL ANCHOR W/ COUNTERSUNK FASTENERS, SSD CONC. FOUNDATION, SSD FELT AND SEALANT EXPANSION JOINT FLEXIBLE FLASHING EPDM GASKET UNDER SILL PLATE PT WOOD SILL PLATE SHIM ALUMINUM THRESHOLD SORPETALER WOOD DOOR, SEE DOOR SCHEDULE VENTILATED RUBBER BASE FLEXIBLE FLASHING GYM WOOD FLOORING ASSEMBLY FELT EXPANSION JOINT HYDRONICS SYSTEM INSULATION 3" = 1'-0" 3 DETAIL @ NORTH ENTRY HEAD
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
