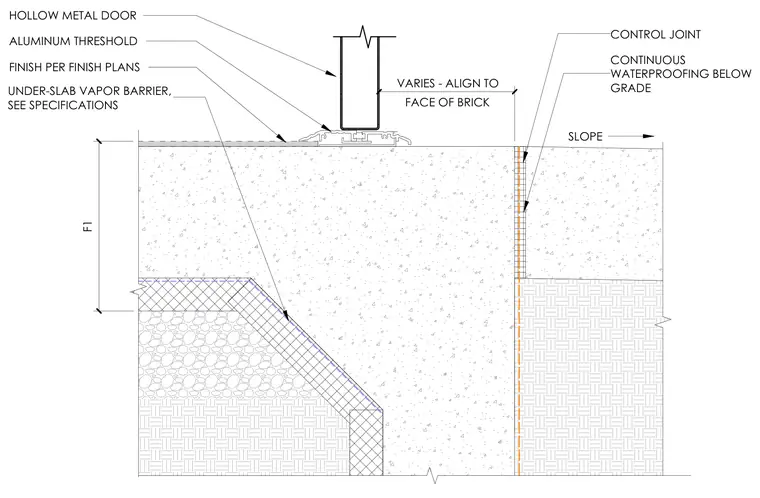

A hollow metal door sits atop an aluminum threshold supported by a concrete slab. The face of the brick varies and aligns to the continuous waterproofing below grade. A control joint is incorporated into the slab adjacent to the opening, and an under-slab vapor barrier is installed per specifications beneath the slab finish.
FACE OF BRICK VARIES - ALIGN TO CONTINUOUS WATERPROOFING BELOW GRADE CONTROL JOINT UNDER-SLAB VAPOR BARRIER, SEE SPECIFICATIONS ALUMINUM THRESHOLD FINISH PER FINISH PLANS HOLLOW METAL DOOR F1 SLOPE
