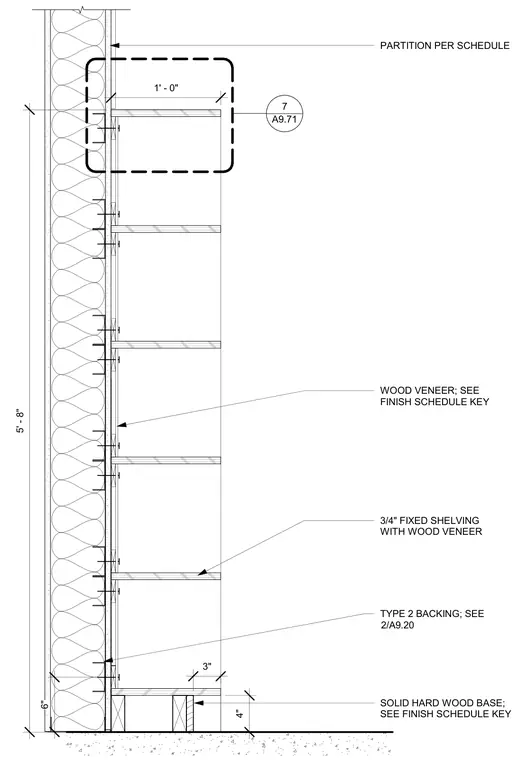

This wall section details a built-in library shelving unit mounted against a partition per schedule with type 2 backing. The assembly features three-quarter-inch fixed shelving finished with wood veneer, matching the wood veneer finish schedule key. A solid hardwood base with a four-inch height is anchored at the bottom of the shelving run. Vertical dimensions indicate a five-foot eight-inch overall height for the shelving array, with one-foot shelf depths and a six-inch base clearance.
PARTITION PER SCHEDULE 6" 3/4" FIXED SHELVING WITH WOOD VENEER SOLID HARD WOOD BASE; SEE FINISH SCHEDULE KEY WOOD VENEER; SEE FINISH SCHEDULE KEY 1' - 0" 3" __________ A9.71 7 5' - 8" TYPE 2 BACKING; SEE 2/A9.20 4"
