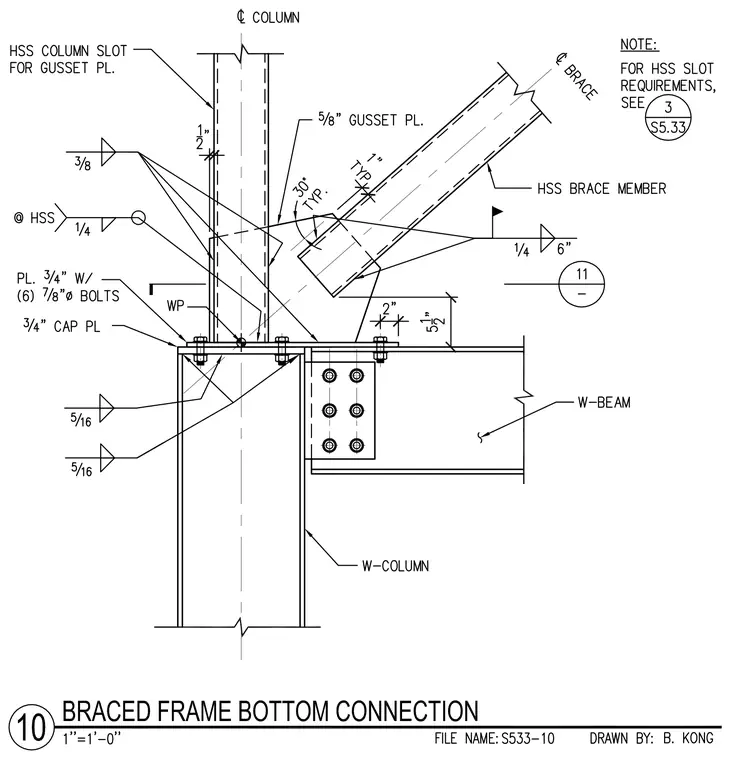

An HSS brace member frames into a five-eighths inch thick gusset plate with a thirty degree typical angle, welded with a one-quarter inch fillet weld. The gusset plate extends down to a three-quarter inch cap plate atop a W-column, featuring an HSS column slot for the gusset plate with a one-half inch clearance and a three-eighths inch fillet weld. A three-quarter inch plate with six seven-eighths inch diameter bolts connects to the assembly. A W-beam connects to the W-column flange via a shear tab with five-sixteenths inch fillet welds on both sides. A note specifies that for HSS slot requirements, see detail 3 on sheet S5.33.
