Architectural · A-W5TDD

Chain Link Fence and Sliding Gate

Materials

Concrete Steel Metal (misc.)

Elements

Columns Floors / Slabs Foundations / Footings Bracing Reinforcing Roof / Floor Openings

Connections

Bracing Connection

About this detail

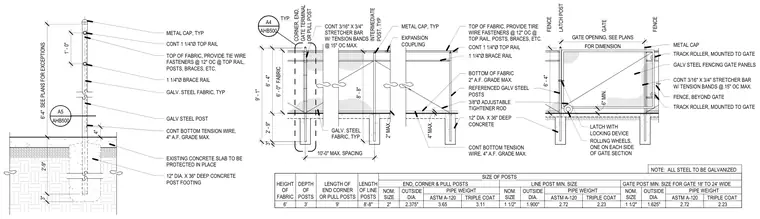

Galvanized steel fence posts are anchored in twelve-inch diameter by thirty-six-inch deep concrete post footings set through existing concrete slabs. The continuous one-and-a-quarter-inch diameter top rail and brace rail secure the galvanized steel fabric using tie wire fasteners spaced at twelve inches on center. Stretcher bars measuring three-sixteenths by three-quarters of an inch with tension bands spaced at fifteen inches on center secure the fabric at terminal posts. The sliding gate assembly incorporates track rollers mounted to the gate, rolling wheels, an adjustable tightener rod, and a latch with a locking device. All structural steel components are galvanized per specifications.
