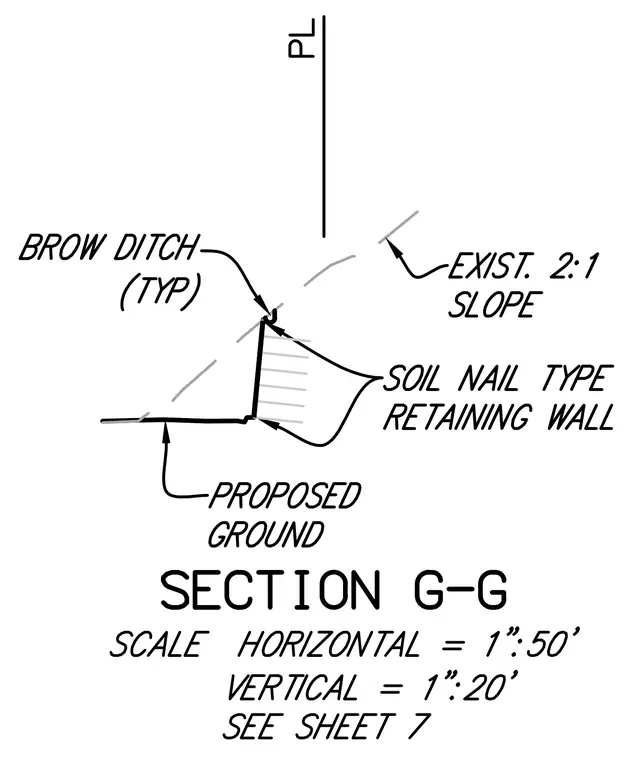

A soil nail type retaining wall supports an existing two-to-one slope adjacent to the property line. A brow ditch is provided typically at the top of the wall to handle drainage. The proposed ground level meets the base of the wall.
