A typical six-inch cast-in-place concrete wall assembly features stick-pin insulation applied to the interior face as required by the authority having jurisdiction.

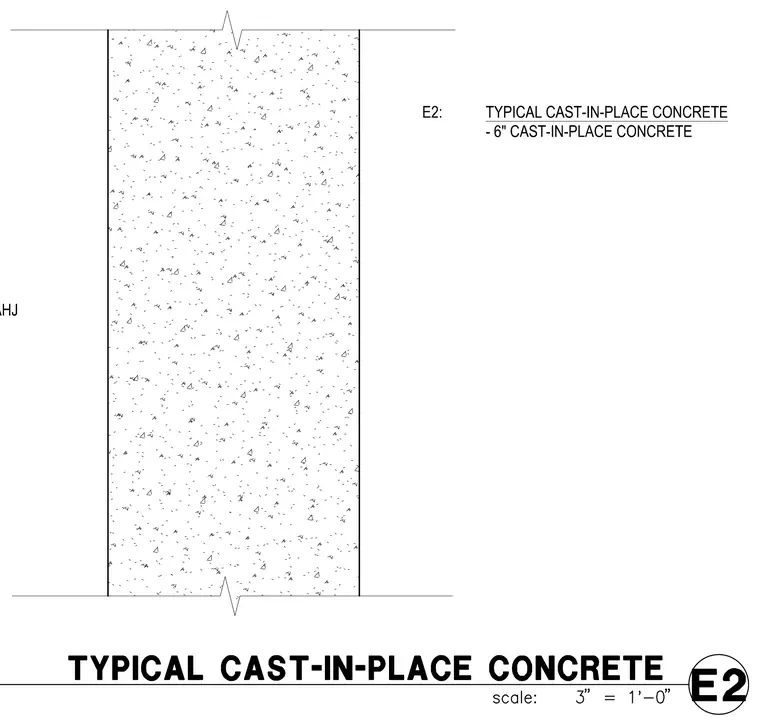

E2: TYPICAL CAST-IN-PLACE CONCRETE - 6" CAST-IN-PLACE CONCRETE - STICK PIN INSULATION - AS REQUIRED BY AHJ
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
