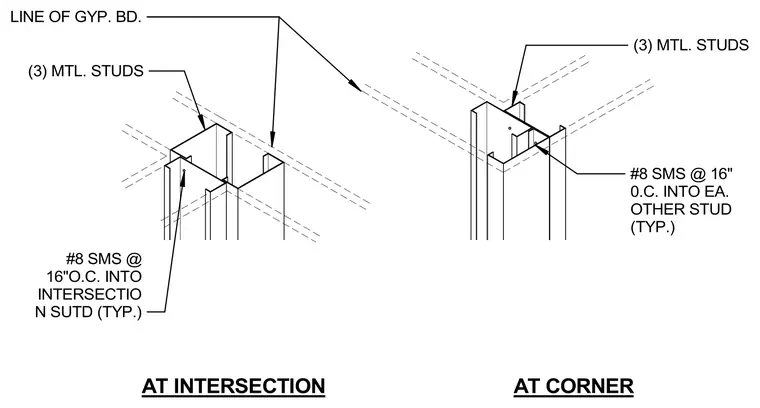

Three metal studs are configured at wall intersections and corners to receive gypsum board finishes on each side. The framing is secured using number eight sheet metal screws spaced at sixteen inches on center into each other or into the intersecting stud. Gypsum board lines are indicated running continuously past the framed junctions.
#8 SMS @ 16"O.C. INTO INTERSECTIO N SUTD (TYP.) (3) MTL. STUDS LINE OF GYP. BD. (3) MTL. STUDS #8 SMS @ 16" 0.C. INTO EA. OTHER STUD (TYP.) AT INTERSECTION AT CORNER
