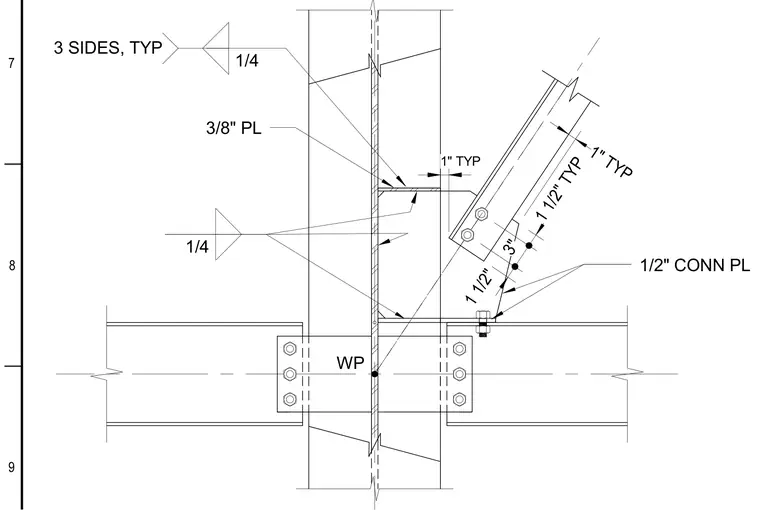

A structural steel braced frame connection details the intersection of a diagonal brace, floor beam, and vertical column at a working point. The diagonal brace connects to a one-half-inch connection plate using bolts spaced at one and one-half inches and three inches on center. The connection plate ties into a three-eighths-inch plate welded to the column flange with one-quarter-inch fillet welds on three sides. The horizontal beam frames into the column with shear tabs and bolts. All components are detailed with specific edge distances and clearances.
WP 1/2" CONN PL 3/8" PL 1" TYP 1" TYP 1 1/2" 3" 1 1/2" TYP 1/4 1/4 3 SIDES, TYP . 9 8 7
