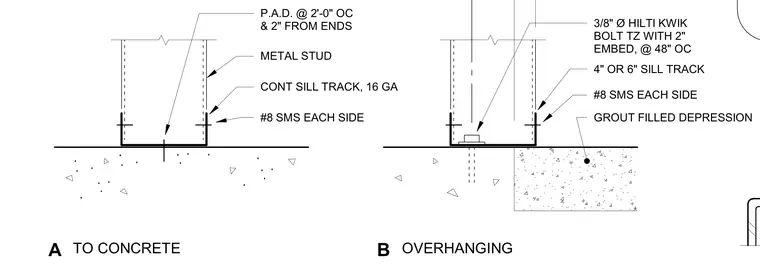

The assembly anchors a sixteen-gauge continuous sill track to a concrete foundation or slab. Sixteenth-gauge metal studs frame into the four-inch or six-inch continuous sill track and are secured with number eight sheet metal screws on each side. The track is fastened directly to the concrete using powder-actuated fasteners spaced at two feet on center with two-inch end clearances, or alternately anchored using three-eighths-inch diameter Hilti Kwik Bolt TZ expansion anchors with a two-inch embedment spaced at forty-eight inches on center over a grout-filled depression.
#8 SMS EACH SIDE P.A.D. @ 2'-0" OC & 2" FROM ENDS 4" OR 6" SILL TRACK 3/8" Ø HILTI KWIK BOLT TZ WITH 2" EMBED, @ 48" OC #8 SMS EACH SIDE GROUT FILLED DEPRESSION CONT SILL TRACK, 16 GA METAL STUD TO CONCRETE A OVERHANGING B
