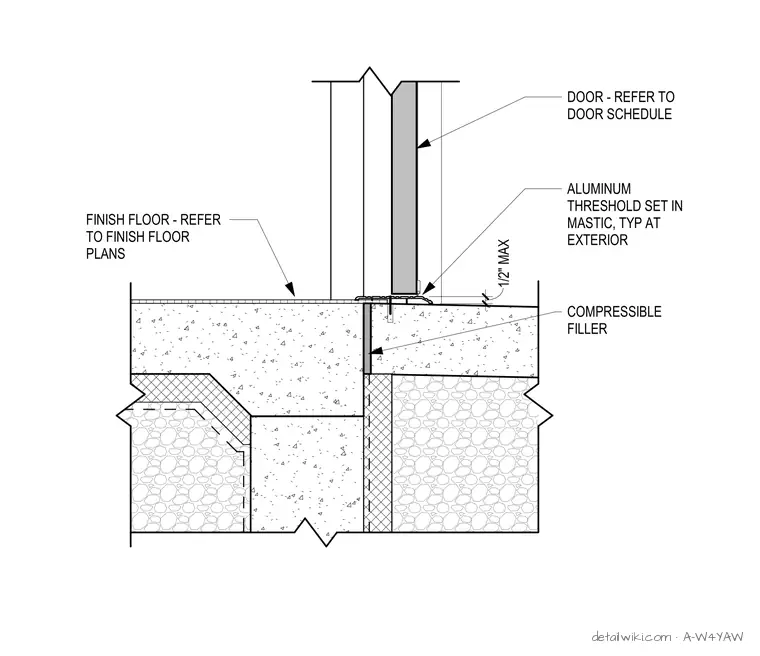

This assembly consists of an aluminum threshold set in mastic at the exterior door location, maintaining a maximum height of 1/2 inch. The threshold sits atop a concrete slab that incorporates a vertical compressible filler at the expansion joint. The door type is specified per the door schedule, and the finish floor elevation is determined by the finish floor plans.
