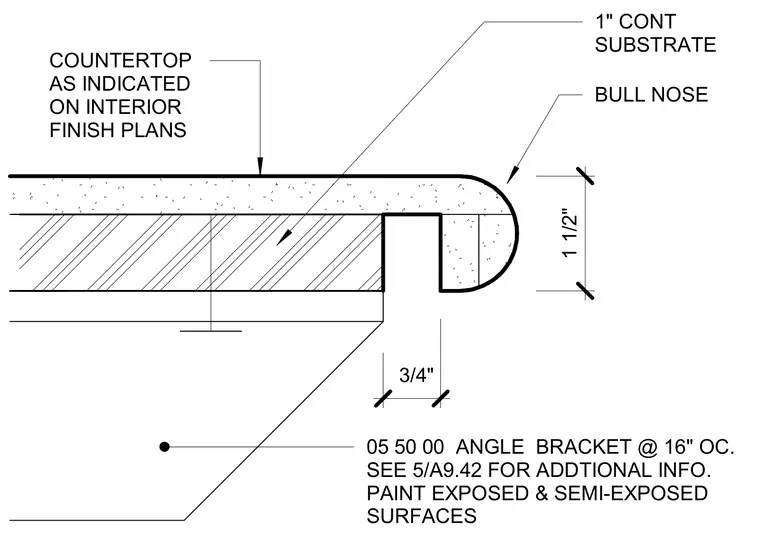

A countertop material rests on a one-inch continuous substrate featuring a rounded bullnose edge profile with a one-and-a-half-inch overall depth. An angle bracket spaced at sixteen inches on center supports the assembly from underneath. Exposed and semi-exposed surfaces receive a painted finish.
COUNTERTOP AS INDICATED ON INTERIOR FINISH PLANS BULL NOSE 1" CONT SUBSTRATE 1 1/2" 3/4" 05 50 00 ANGLE BRACKET @ 16" OC. SEE 5/A9.42 FOR ADDTIONAL INFO. PAINT EXPOSED & SEMI-EXPOSED SURFACES
