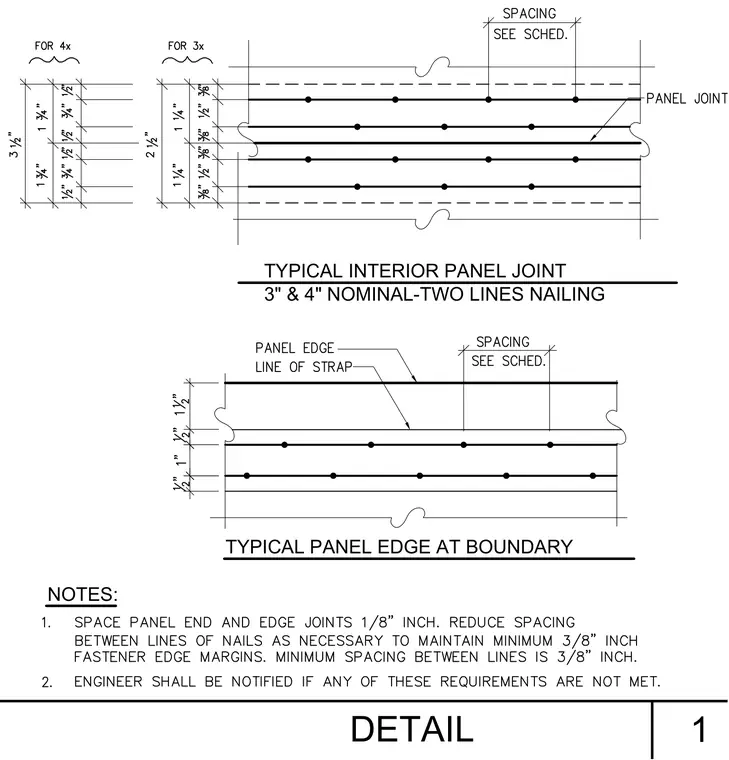

Two nailing details show edge and joint configurations for three-inch and four-inch nominal panels fastened with two lines of nails. The interior panel joint detail provides specific dimensional offsets of one and one-quarter inches and three-eighths inches from the joint line to fastener lines, with fastener spacing determined per schedule. The typical panel edge at boundary detail establishes strap alignment and edge margins measuring one and one-half inches and one inch. Panel end and edge joints require a one-eighth inch gap, with nail spacing adjusted to maintain minimum three-eighths inch fastener edge margins.
DETAIL 1 NOTES: TYPICAL PANEL EDGE AT BOUNDARY 3" & 4" NOMINAL-TWO LINES NAILING TYPICAL INTERIOR PANEL JOINT
