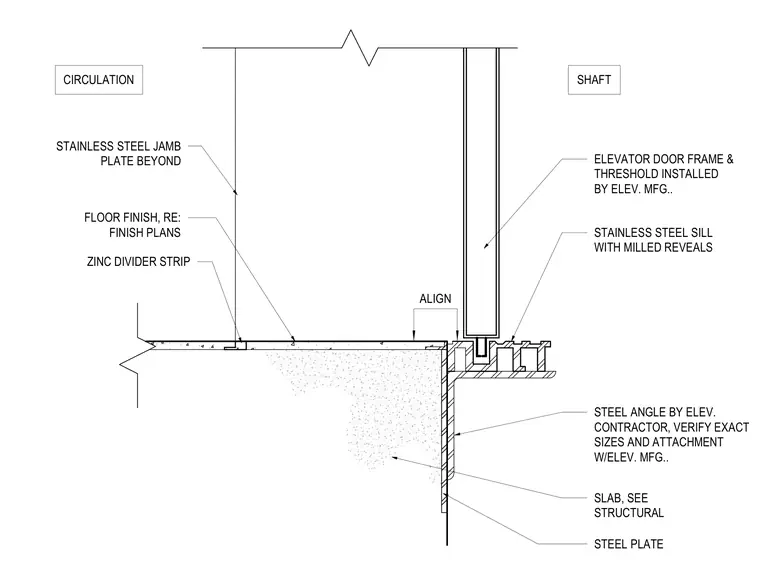

An elevator door threshold and sill rest on a structural concrete slab, supported by a steel angle and steel plate provided by the elevator manufacturer. The stainless steel sill features milled reveals and aligns with the elevator door frame and threshold assembly. A zinc divider strip is set into the flooring finish adjacent to the opening, transitioning to a stainless steel jamb plate beyond the floor finish.
ZINC DIVIDER STRIP STEEL ANGLE BY ELEV. CONTRACTOR, VERIFY EXACT SIZES AND ATTACHMENT W/ELEV. MFG.. ELEVATOR DOOR FRAME & THRESHOLD INSTALLED BY ELEV. MFG.. STEEL PLATE STAINLESS STEEL JAMB PLATE BEYOND FLOOR FINISH, RE: FINISH PLANS SLAB, SEE STRUCTURAL STAINLESS STEEL SILL WITH MILLED REVEALS SHAFT CIRCULATION ALIGN
