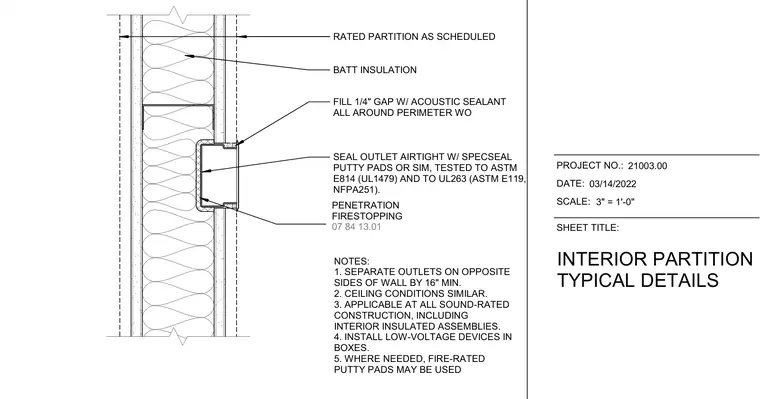

An electrical junction box is installed within a rated interior partition containing batt insulation. A quarter-inch gap around the box perimeter is filled with acoustic sealant. The outlet is sealed airtight using fire-rated putty pads or similar approved products, tested to ASTM E814 and UL263 standards. Outlets on opposite sides of the wall must maintain a sixteen-inch minimum separation. Low-voltage devices are installed in boxes, and ceiling conditions follow similar installation rules.
RATED PARTITION AS SCHEDULED BATT INSULATION SEAL OUTLET AIRTIGHT W/ SPECSEAL PUTTY PADS OR SIM, TESTED TO ASTM E814 (UL1479) AND TO UL263 (ASTM E119, NFPA251). NOTES: 1. SEPARATE OUTLETS ON OPPOSITE SIDES OF WALL BY 16" MIN. 2. CEILING CONDITIONS SIMILAR. 3. APPLICABLE AT ALL SOUND-RATED CONSTRUCTION, INCLUDING INTERIOR INSULATED ASSEMBLIES. 4. INSTALL LOW-VOLTAGE DEVICES IN BOXES. 5. WHERE NEEDED, FIRE-RATED PUTTY PADS MAY BE USED FILL 1/4" GAP W/ ACOUSTIC SEALANT ALL AROUND PERIMETER WO 07 84 13.01 PENETRATION FIRESTOPPING SHEET TITLE: PROJECT NO.: DATE: SCALE: 3" = 1'-0" 21003.00 INTERIOR PARTITION TYPICAL DETAILS 03/14/2022
