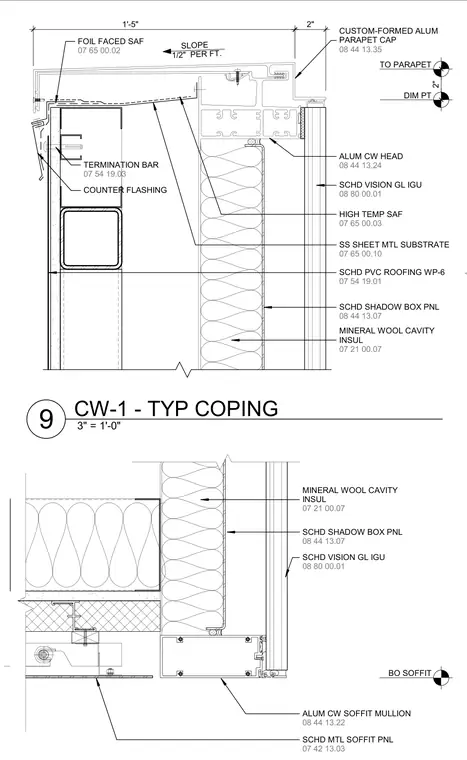

A parapet coping and curtain wall head assembly integrates a custom-formed aluminum parapet cap, scheduled PVC roofing membrane, and a stainless steel sheet metal substrate counter flashing. The assembly slopes one-half inch per foot toward the interior and incorporates foil-faced sub-roofing material, a termination bar, and high-temperature sub-roofing over mineral wool cavity insulation. Below the parapet, the curtain wall head transitions to a scheduled vision glass insulated glazing unit and shadow box panel. At the base of the detail, an aluminum curtain wall soffit mullion and scheduled metal soffit panel complete the junction.
BO SOFFIT 08 44 13.22 ALUM CW SOFFIT MULLION 07 42 13.03 SCHD MTL SOFFIT PNL 08 80 00.01 SCHD VISION GL IGU 07 21 00.07 MINERAL WOOL CAVITY INSUL 08 44 13.07 SCHD SHADOW BOX PNL TO PARAPET DIM PT 2" 08 44 13.35 CUSTOM-FORMED ALUM PARAPET CAP 08 44 13.24 ALUM CW HEAD 08 80 00.01 SCHD VISION GL IGU 08 44 13.07 SCHD SHADOW BOX PNL 07 21 00.07 MINERAL WOOL CAVITY INSUL 07 65 00.03 HIGH TEMP SAF SLOPE 1/2" PER FT. 07 65 00.02 FOIL FACED SAF 07 54 19.03 TERMINATION BAR 07 54 19.01 SCHD PVC ROOFING WP-6 07 65 00.10 SS SHEET MTL SUBSTRATE COUNTER FLASHING 2" 1'-5" 3" = 1'-0" 9 CW-1 - TYP COPING
