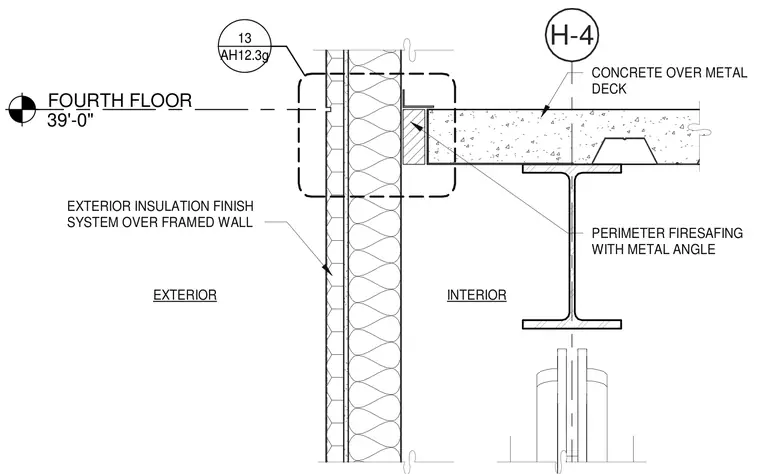

An exterior insulation finish system over a framed wall meets a concrete over metal deck floor slab at the fourth floor level. Perimeter firesafing with a metal angle fills the joint between the slab edge and the exterior wall assembly.
H-4 FOURTH FLOOR 39'-0" EXTERIOR INTERIOR AH12.3g 13 CONCRETE OVER METAL DECK PERIMETER FIRESAFING WITH METAL ANGLE EXTERIOR INSULATION FINISH SYSTEM OVER FRAMED WALL
