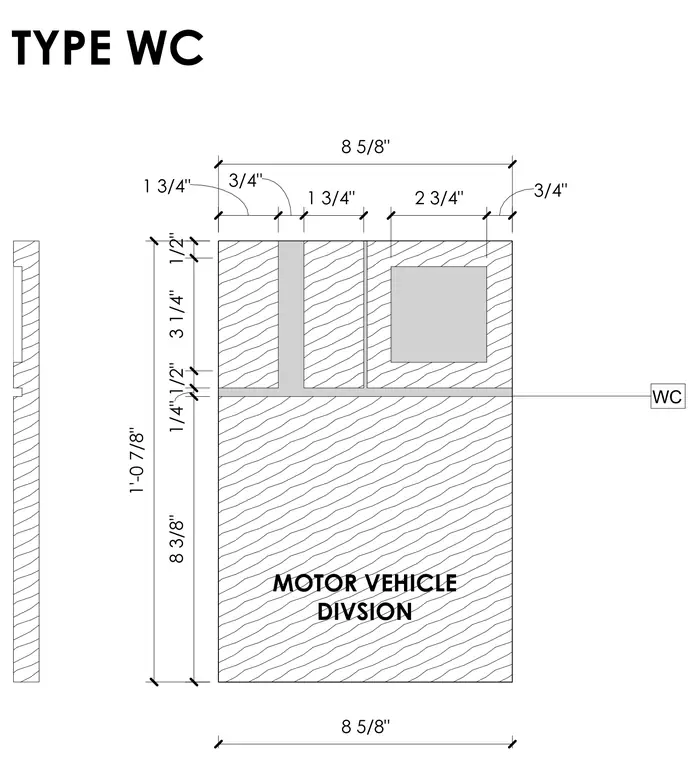

This dimensioned panel assembly features precision-routed lettering for the Motor Vehicle Division measuring one foot and seven-eighths inches in total height by eight and five-eighths inches wide. The face incorporates detailed vertical and horizontal reveals with varying depths including three-quarter-inch, one-and-three-quarter-inch, and two-and-three-quarter-inch segments. Additional half-inch, quarter-inch, and three-and-a-quarter-inch dimensional checks govern the layout of the text blocks and surrounding border margins.
WC 1'-0 7/8" 8 5/8" 2 3/4" 3/4" 1/2" 3 1/4" 1/2" 1/4" 8 3/8" 8 5/8" MOTOR VEHICLE DIVSION 1 3/4" 3/4" 1 3/4" TYPE WC
