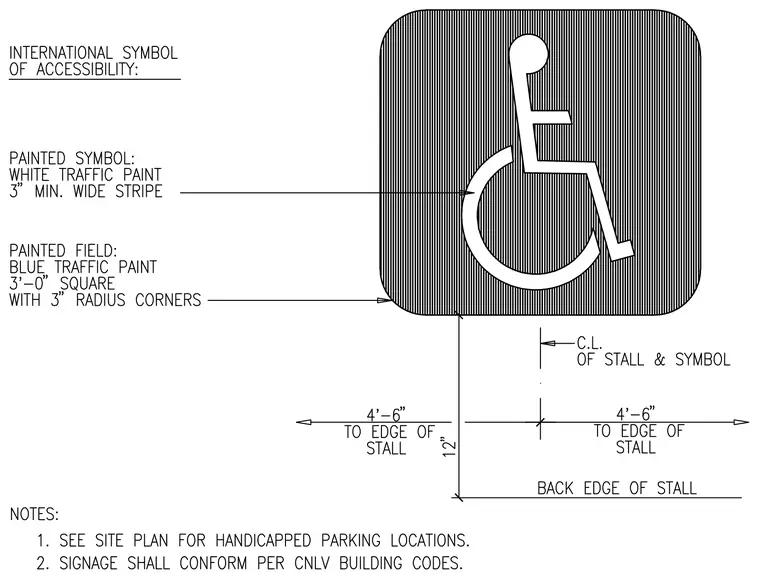

The international symbol of accessibility is painted using white traffic paint with a three-inch minimum wide stripe. The painted field consists of blue traffic paint forming a three-foot zero-inch square with three-inch radius corners. Dimensions locate the symbol twelve inches from the back edge of the stall and centered between the stall edges.
