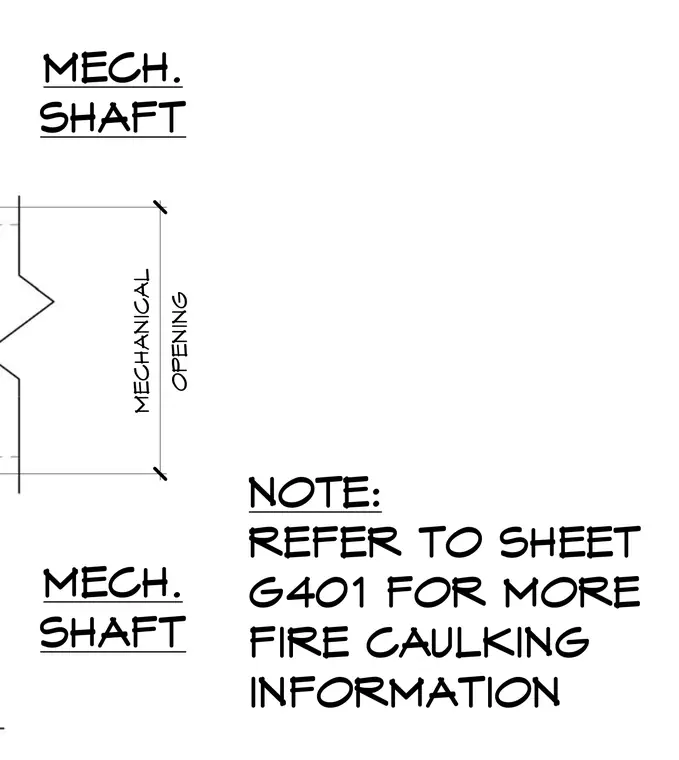

This drawing outlines the mechanical shaft opening and directs personnel to sheet G401 for additional fire caulking information.
OPENING MECHANICAL MECH. SHAFT MECH. SHAFT NOTE: REFER TO SHEET G401 FOR MORE FIRE CAULKING INFORMATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
