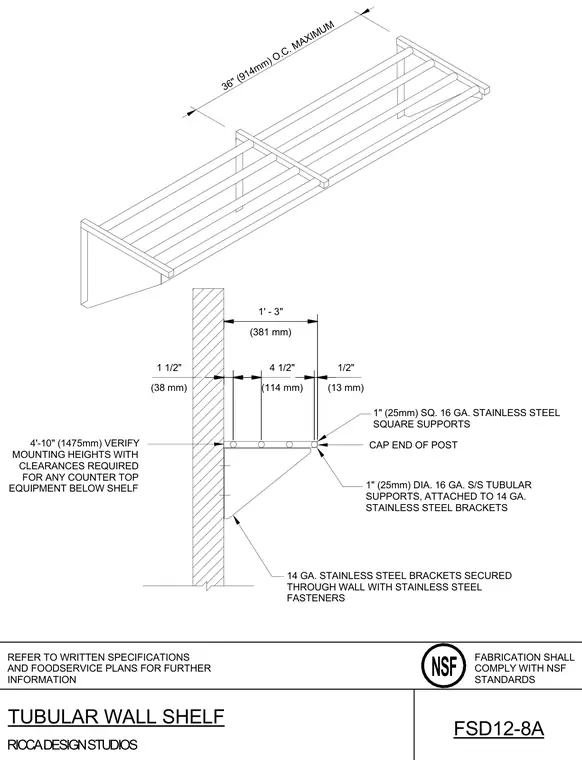

A tubular wall shelf is fabricated from sixteen gauge stainless steel components complying with NSF standards. One-inch diameter sixteen gauge stainless steel tubular supports attach to fourteen gauge stainless steel brackets, which secure directly through the wall using stainless steel fasteners. One-inch square sixteen gauge stainless steel square supports cap the ends of the posts with a maximum spacing of thirty-six inches on center. The shelf mounts at four feet ten inches above the floor, subject to verification with clearances required for any countertop equipment placed below.
NSF REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS 1" (25mm) SQ. 16 GA. STAINLESS STEEL SQUARE SUPPORTS CAP END OF POST 1" (25mm) DIA. 16 GA. S/S TUBULAR SUPPORTS, ATTACHED TO 14 GA. STAINLESS STEEL BRACKETS 14 GA. STAINLESS STEEL BRACKETS SECURED THROUGH WALL WITH STAINLESS STEEL FASTENERS 4'-10" (1475mm) VERIFY MOUNTING HEIGHTS WITH CLEARANCES REQUIRED FOR ANY COUNTER TOP EQUIPMENT BELOW SHELF 36" (914mm) O.C. MAXIMUM (38 mm) 1 1/2" (114 mm) 4 1/2" (13 mm) 1/2" (381 mm) 1' - 3" TUBULAR WALL SHELF FSD12-8A
