An interior concrete masonry unit infill wall receives specified interior finishes or coatings on both sides. The structural masonry core is sized and detailed per structural engineering drawings. Applied interior finishes finish out both faces of the partition.

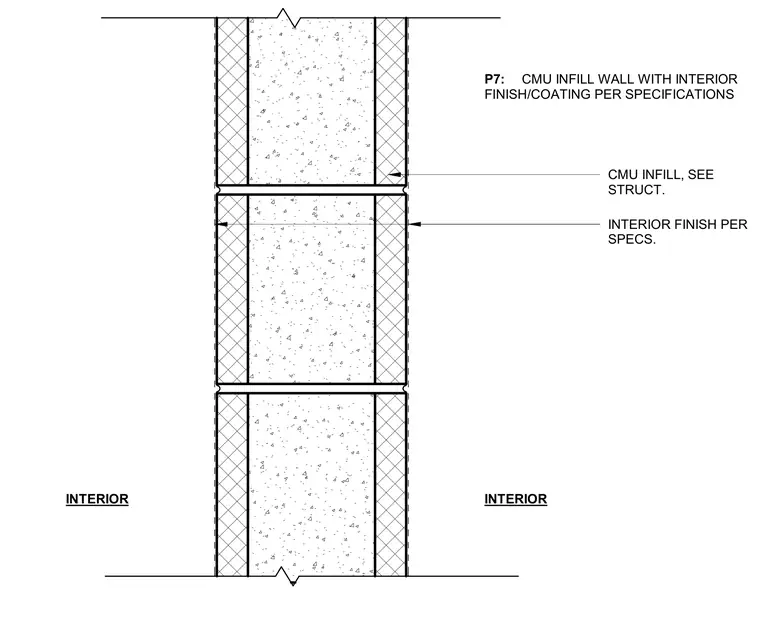

INTERIOR CMU INFILL, SEE STRUCT. INTERIOR INTERIOR FINISH PER SPECS. P7: CMU INFILL WALL WITH INTERIOR FINISH/COATING PER SPECIFICATIONS
