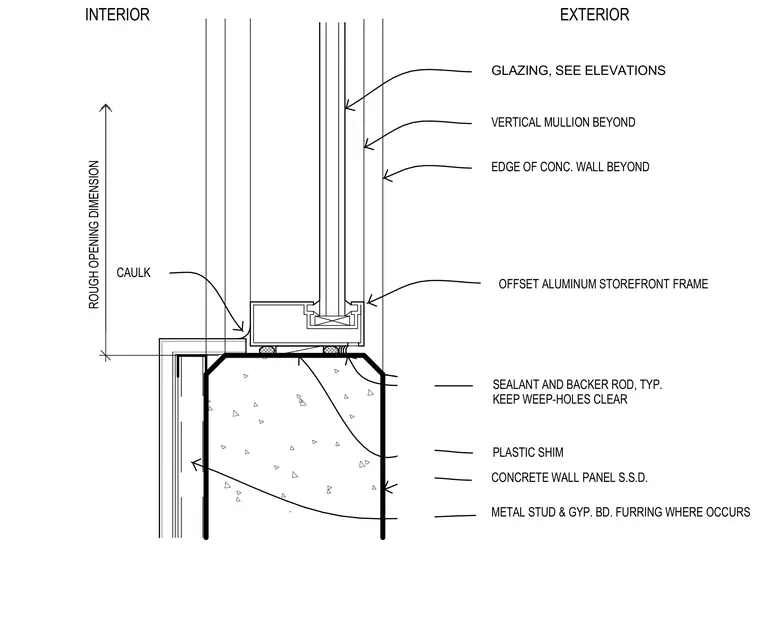

An offset aluminum storefront frame bears on plastic shims placed over a concrete wall panel. Sealant and backer rod seal the exterior joint while keeping weep-holes clear. The interior features caulk at the rough opening dimension between the frame and metal stud with gypsum board furring where it occurs.
ROUGH OPENING DIMENSION EXTERIOR INTERIOR GLAZING, SEE ELEVATIONS CONCRETE WALL PANEL S.S.D. PLASTIC SHIM SEALANT AND BACKER ROD, TYP. KEEP WEEP-HOLES CLEAR VERTICAL MULLION BEYOND EDGE OF CONC. WALL BEYOND METAL STUD & GYP. BD. FURRING WHERE OCCURS OFFSET ALUMINUM STOREFRONT FRAME CAULK
