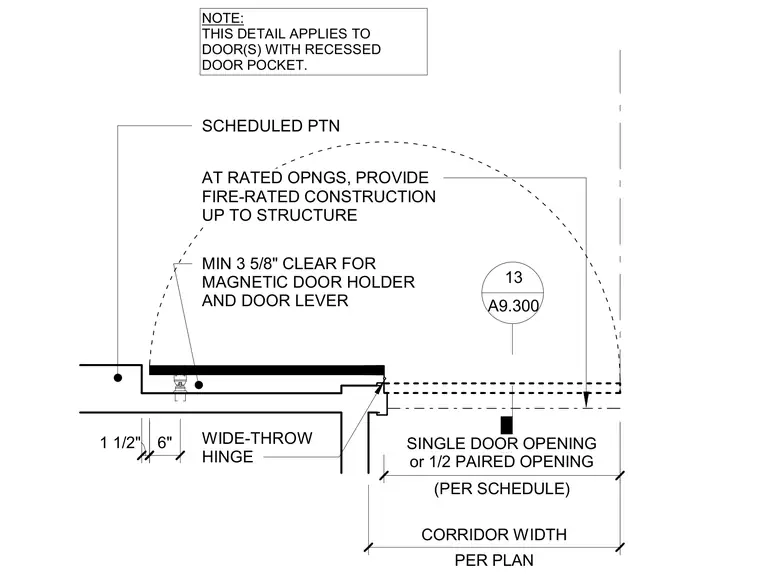

A scheduled partition provides fire-rated construction up to the structure at rated openings. The layout maintains a minimum three and five-eighths inch clearance for the magnetic door holder and door lever. A wide-throw hinge accommodates the single or paired door opening within the recessed door pocket per the schedule. Corridor width is maintained per plan.
PER PLAN CORRIDOR WIDTH AT RATED OPNGS, PROVIDE FIRE-RATED CONSTRUCTION UP TO STRUCTURE SCHEDULED PTN MIN 3 5/8" CLEAR FOR MAGNETIC DOOR HOLDER AND DOOR LEVER 13 A9.300 NOTE: THIS DETAIL APPLIES TO DOOR(S) WITH RECESSED DOOR POCKET. (PER SCHEDULE) SINGLE DOOR OPENING or 1/2 PAIRED OPENING 6" 1 1/2" WIDE-THROW HINGE
