A motorized or operated roller shade with a protective fascia is mounted adjacent to a thermally broken aluminum storefront system. Full-length wood blocking is provided to secure the roller shade assembly. The storefront system interfaces with the exterior wall assembly and incorporates glazing specified in the glazing schedule.

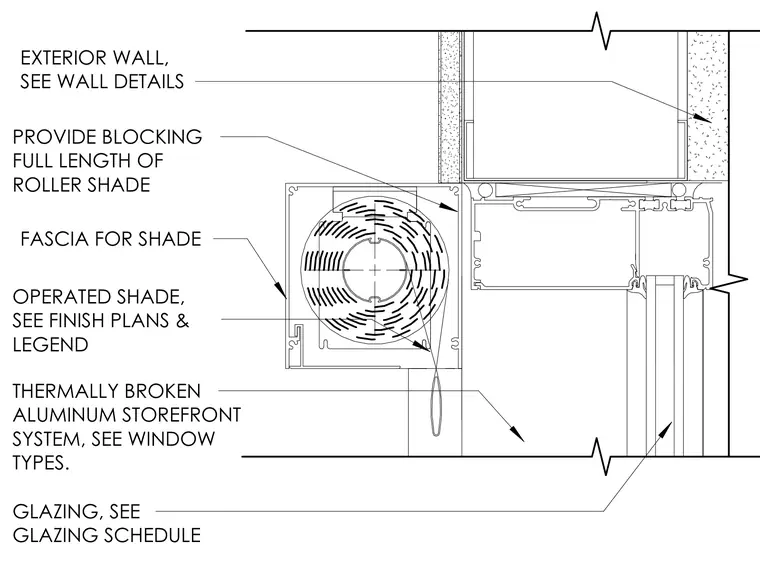

PROVIDE BLOCKING FULL LENGTH OF ROLLER SHADE OPERATED SHADE, SEE FINISH PLANS & LEGEND THERMALLY BROKEN ALUMINUM STOREFRONT SYSTEM, SEE WINDOW TYPES. GLAZING, SEE GLAZING SCHEDULE EXTERIOR WALL, SEE WALL DETAILS FASCIA FOR SHADE
