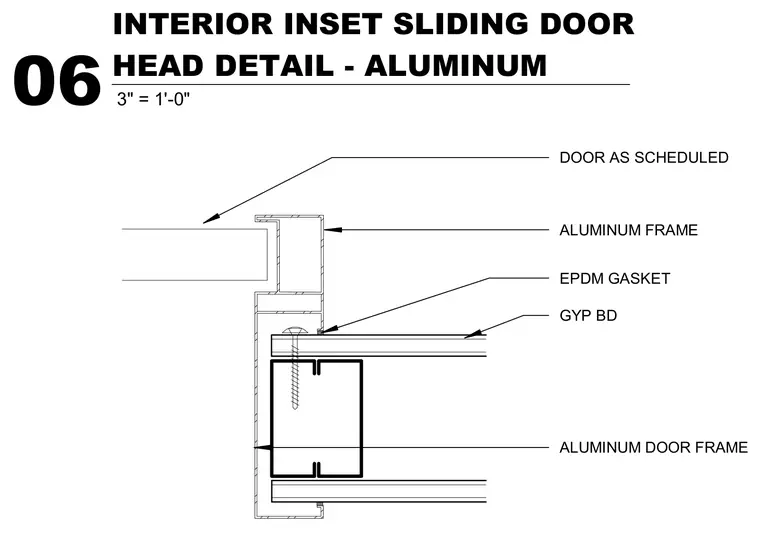

An aluminum sliding door frame is integrated with gypsum board partitions at the head condition. An EPDM gasket provides a seal between the aluminum frame and the gypsum board surface. The sliding door panel is positioned within the frame as scheduled.
EPDM GASKET GYP BD ALUMINUM DOOR FRAME ALUMINUM FRAME DOOR AS SCHEDULED 3" = 1'-0" 06 INTERIOR INSET SLIDING DOOR HEAD DETAIL - ALUMINUM
