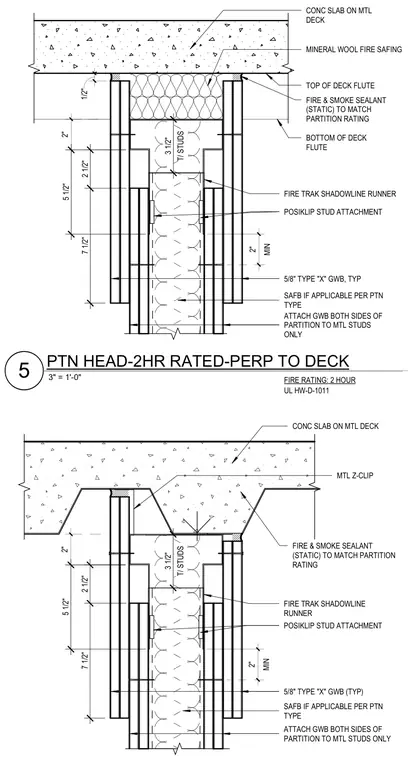

A two-hour fire-rated interior partition head assembly terminates at a concrete slab on a metal deck. A top track runner with a fire-rated shadowline and PosiKlip stud attachments supports metal studs faced with 5/8-inch Type X gypsum wallboard on both sides. Gypsum board is fastened to the metal studs only, maintaining a clearance gap at the structural deck above. Mineral wool fire safing and static fire-and-smoke sealant match the required partition rating at the deck interface. The condition is detailed both perpendicular and parallel to the fluted metal deck profiles.
FIRE TRAK SHADOWLINE RUNNER POSIKLIP STUD ATTACHMENT SAFB IF APPLICABLE PER PTN TYPE ATTACH GWB BOTH SIDES OF PARTITION TO MTL STUDS ONLY 5/8" TYPE "X" GWB (TYP) 2" FIRE & SMOKE SEALANT (STATIC) TO MATCH PARTITION RATING CONC SLAB ON MTL DECK MTL Z-CLIP MIN 2" 2 1/2" 7 1/2" 5 1/2" T/ STUDS 3 1/2" FIRE TRAK SHADOWLINE RUNNER FIRE RATING: 2 HOUR UL HW-D-1011 POSIKLIP STUD ATTACHMENT SAFB IF APPLICABLE PER PTN TYPE ATTACH GWB BOTH SIDES OF PARTITION TO MTL STUDS ONLY 5/8" TYPE "X" GWB, TYP 2" BOTTOM OF DECK FLUTE TOP OF DECK FLUTE CONC SLAB ON MTL DECK 1/2" FIRE & SMOKE SEALANT (STATIC) TO MATCH PARTITION RATING MINERAL WOOL FIRE SAFING 2 1/2" 7 1/2" 5 1/2" T/ STUDS 3 1/2" MIN 2" 3" = 1'-0" 5 PTN HEAD-2HR RATED-PERP TO DECK
