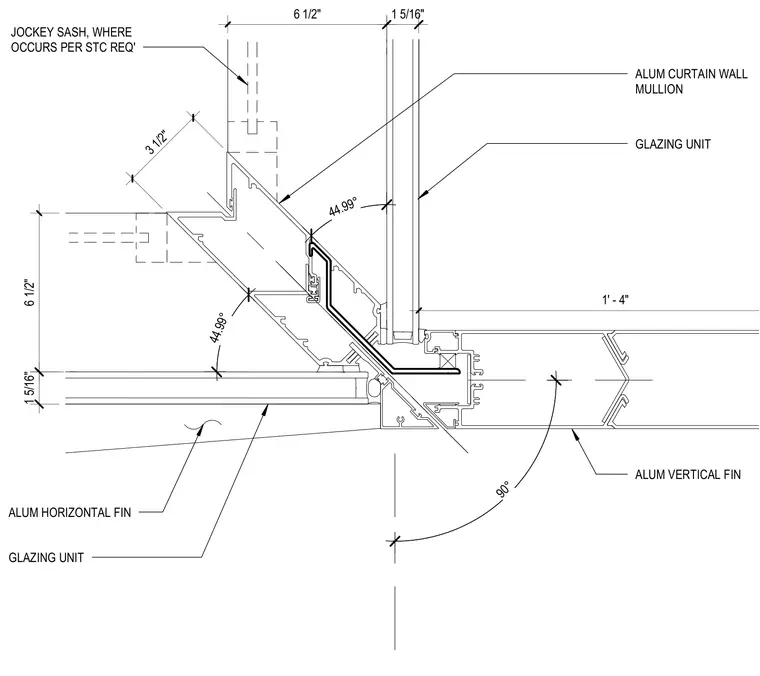

An aluminum curtain wall mullion forms a ninety-degree outer corner supporting adjacent glazing units. Aluminum vertical and horizontal fins project from the exterior mullion profiles. A jockey sash is included where required per sound transmission class specifications. The corner intersection maintains precise angular measurements of approximately forty-four point nine nine degrees for the mitered components.
GLAZING UNIT GLAZING UNIT ALUM HORIZONTAL FIN ALUM CURTAIN WALL MULLION ALUM VERTICAL FIN 90° 1 5/16" 6 1/2" 6 1/2" 1 5/16" 3 1/2" 44.99° 44.99° 1' - 4" JOCKEY SASH, WHERE OCCURS PER STC REQ'
