Metal studs spaced at sixteen inches on center support a main runner with two number eight sheet metal screws at each end. One-inch by sixteen-gauge vertical straps secure the assembly with number eight sheet metal screws at each end. Diagonal one-inch by twenty-gauge straps attach to each side at twelve feet on center with two number eight sheet metal screws at each end. Hanger wires spaced at a maximum of four feet on center may be substituted for the vertical strap. Spacing dimensions range from fifteen to thirty inches with a four-inch maximum clearance.

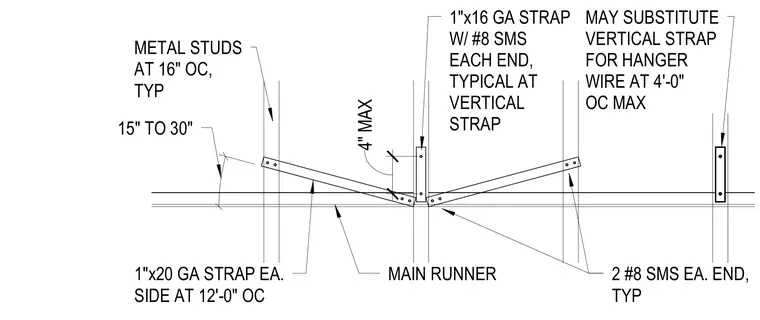

MAIN RUNNER 2 #8 SMS EA. END, TYP 1"x20 GA STRAP EA. SIDE AT 12'-0" OC METAL STUDS AT 16" OC, TYP 1"x16 GA STRAP W/ #8 SMS EACH END, TYPICAL AT VERTICAL STRAP MAY SUBSTITUTE VERTICAL STRAP FOR HANGER WIRE AT 4'-0" OC MAX 15" TO 30" 4" MAX
