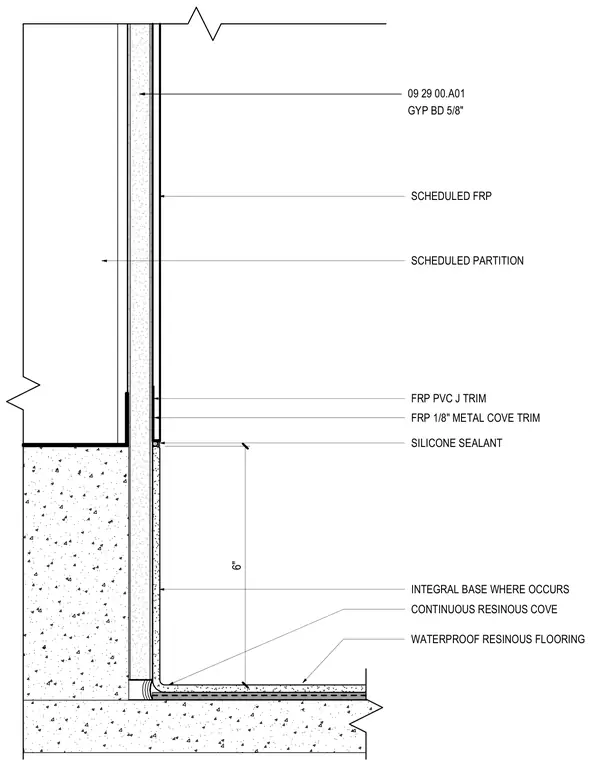

Five-eighths-inch gypsum board is faced with scheduled fiber-reinforced plastic panels over a scheduled partition framing assembly. The panel edge is finished with a polyvinyl chloride J-trim and a one-eighth-inch metal cove trim. A continuous resinous flooring system turns up six inches at the wall base, terminating with a continuous resinous cove sealed with silicone sealant against the trim.
SCHEDULED PARTITION INTEGRAL BASE WHERE OCCURS FRP PVC J TRIM 09 29 00.A01 GYP BD 5/8" CONTINUOUS RESINOUS COVE SCHEDULED FRP FRP 1/8" METAL COVE TRIM SILICONE SEALANT 6" WATERPROOF RESINOUS FLOORING
