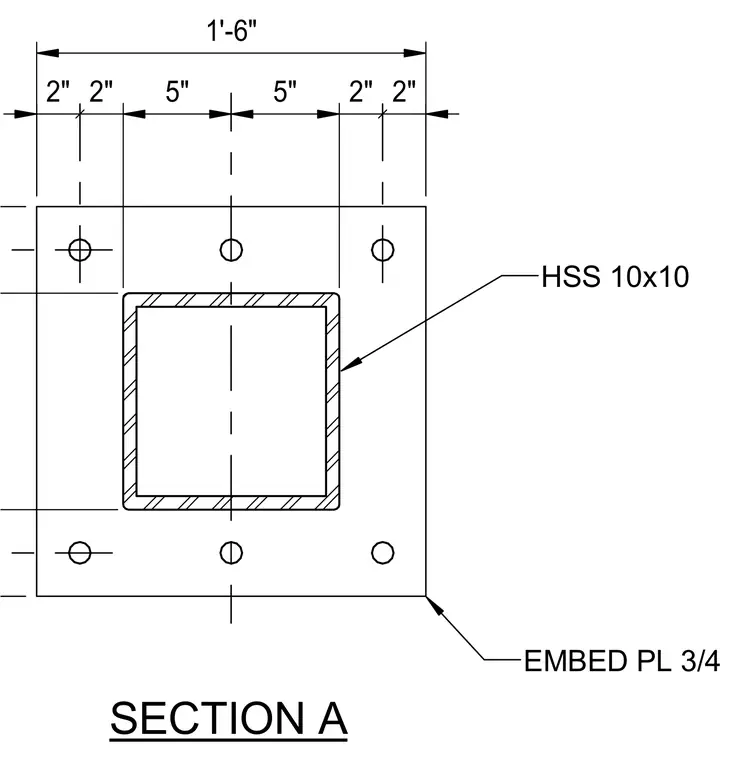

An HSS 10x10 hollow structural section column is centered on a three-quarter-inch thick steel embed plate measuring one foot six inches square. The plate features six pre-drilled anchor bolt holes positioned with two-inch and five-inch edge and center spacings.
