This assembly consists of a built-up stud column composed of three vertical studs matching the typical wall stud size, reinforced with two typical tracks. The column is secured to a continuous bottom track which is anchored to the concrete slab-on-grade using a Simpson SSC4.25 connector. The connector is fastened to the slab with a 3/8-inch diameter by 4 1/2-inch Titen HD anchor and attached to the studs with five number 10 screws on each side. The built-up column assembly is fastened together with eight number 10 self-tapping steel screws spaced at 12 inches on center.
Text on the drawing

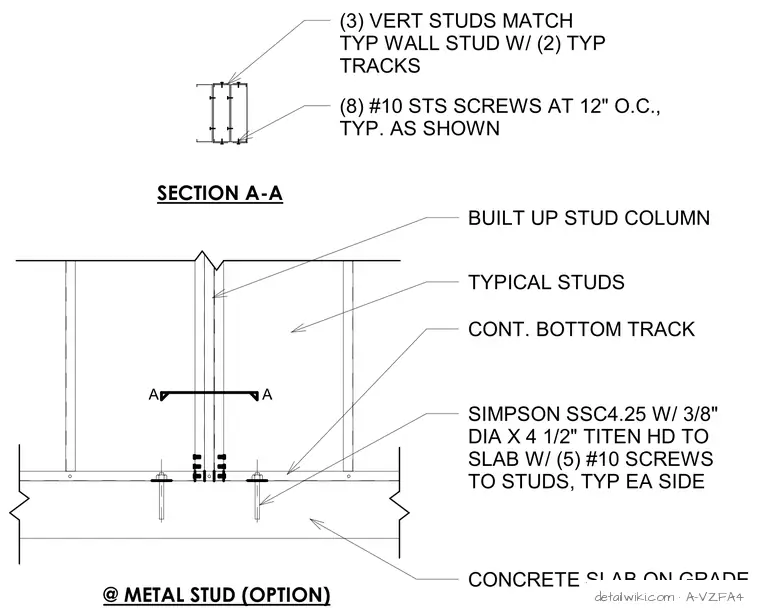

SECTION A-A BUILT UP STUD COLUMN TYPICAL STUDS CONT. BOTTOM TRACK (3) VERT STUDS MATCH TYP WALL STUD W/ (2) TYP TRACKS (8) #10 STS SCREWS AT 12" O.C., TYP. AS SHOWN
