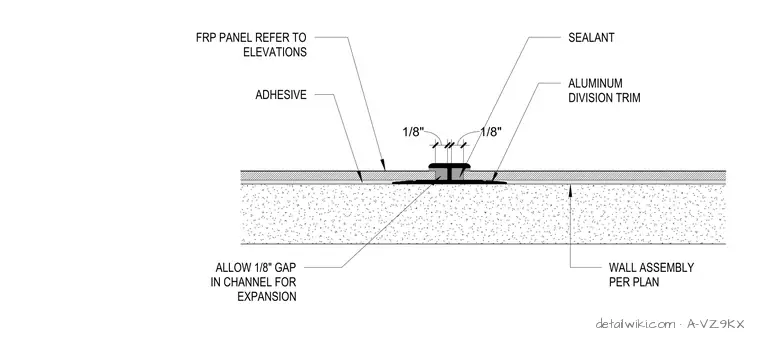

Fiber-reinforced plastic panels are adhered to a wall assembly with a specified adhesive. An aluminum division trim profile is centered between the panels, maintaining a one-eighth-inch gap on each side within the trim channel to accommodate thermal expansion. Sealant is applied at the interface between the trim flanges and the panel faces. The panel layout and wall assembly construction are determined per the project plans.
