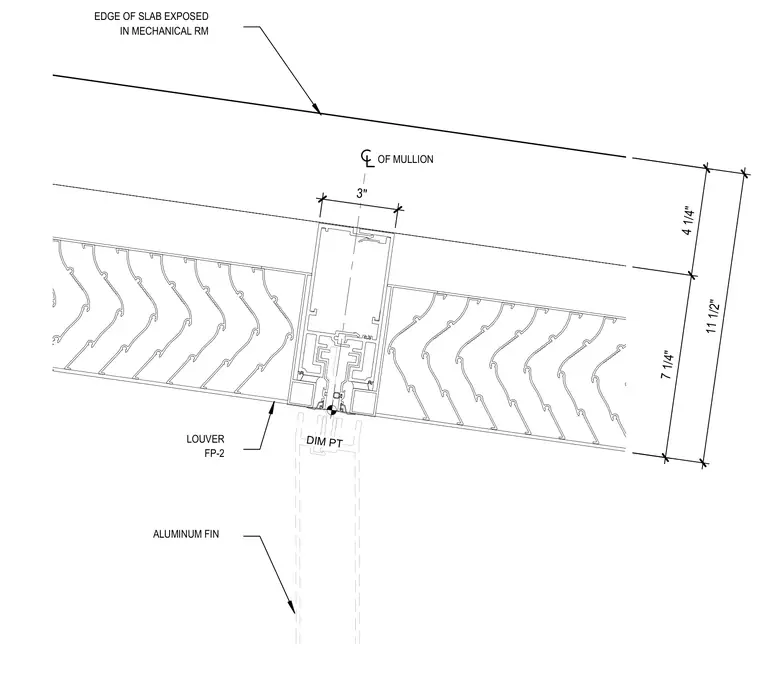

An aluminum louver designated FP-2 is positioned at an 81.87-degree angle with a center mullion spanning three inches. An aluminum fin extends outward from the dimension point at the mullion centerline. The exposed edge of the concrete slab in the mechanical room is located adjacent to the louver assembly, dimensioned four and one-quarter inches from the mullion grid line.
1 1 1 / 2 " EDGE OF SLAB EXPOSED IN MECHANICAL RM DIM PT OF MULLION ALUMINUM FIN LOUVER FP-2 7 1 / 4 " 4 1 / 4 " 3 "
