Cold-formed steel wall assemblies feature typical track splices, door knob blocking, interior jambs, and framing penetrations. The track splice consists of a C-channel track joined with a 2x material splice plate secured by three number ten screws on each side, with studs connected to the channel using two number ten screws. The door knob blocking utilizes a 2x6 flat wood block positioned thirty-six inches to the door and forty-three and one-half inches high between double twenty-gauge metal studs. The interior jamb detail shows an eighteen-gauge rediframe door frame finished with aluminum casing and gypsum board on both sides. The framing penetration detail incorporates a C-channel track with trimmed and bent field tabs connected to the studs with number ten screws around the penetration reinforcement.

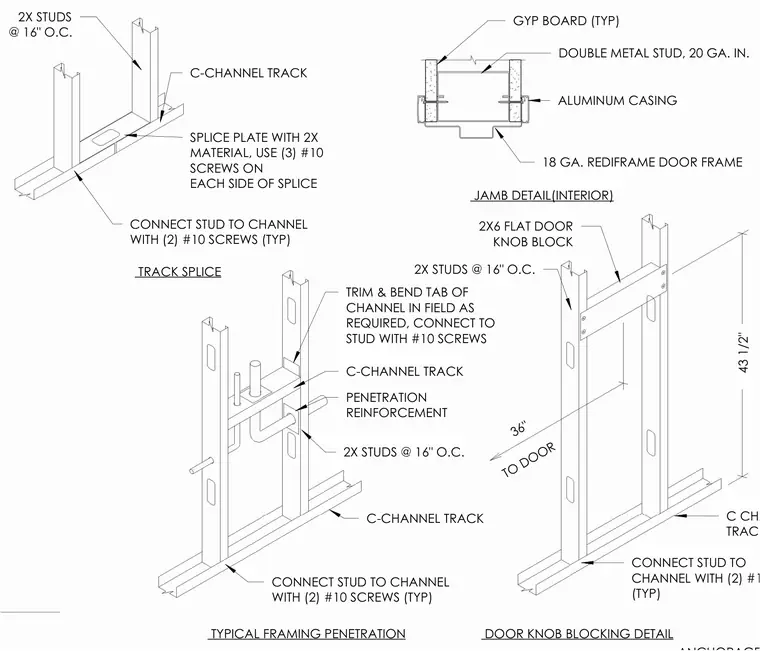

TRACK SPLICE DOOR KNOB BLOCKING DETAIL TYPICAL FRAMING PENETRATION JAMB DETAIL(INTERIOR) 2X STUDS @ 16" O.C. C-CHANNEL TRACK SPLICE PLATE WITH 2X MATERIAL, USE (3) #10 SCREWS ON EACH SIDE OF SPLICE CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) GYP BOARD (TYP) 18 GA. REDIFRAME DOOR FRAME DOUBLE METAL STUD, 20 GA. IN. ALUMINUM CASING 2X STUDS @ 16" O.C. 2X6 FLAT DOOR KNOB BLOCK 36" TO DOOR 43 1/2" CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) C CHANNEL TRACK C-CHANNEL TRACK CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) 2X STUDS @ 16" O.C. PENETRATION REINFORCEMENT C-CHANNEL TRACK TRIM & BEND TAB OF CHANNEL IN FIELD AS REQUIRED, CONNECT TO STUD WITH #10 SCREWS
