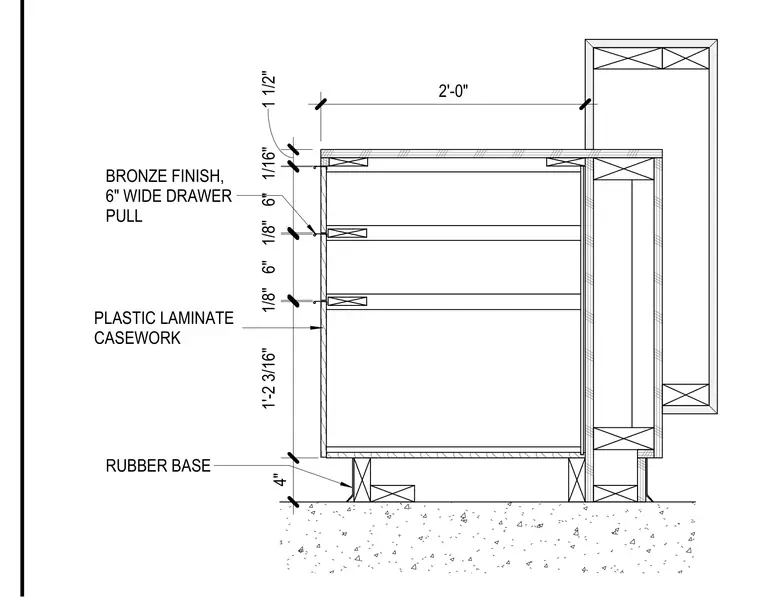

Plastic laminate casework stands atop a four-inch rubber base at the reception counter. A six-inch wide drawer pull with a bronze finish is mounted to the drawer front. The unit has a two-foot depth from front to back, with interior framing and drawer dividers detailed at various vertical spacings.
BRONZE FINISH, 6" WIDE DRAWER PULL 1 1/2" 1/16" 6" 1/8" 6" 1/8" 1'-2 3/16" 4" RUBBER BASE PLASTIC LAMINATE CASEWORK 2'-0"
