A perimeter angle provides edge support for the suspended ceiling grid, allowing a maximum angle tolerance of plus or minus ten degrees. A stabilizer bar is included where required, left unattached to the perimeter angle to accommodate lateral movement. Hanger wires suspend the grid system from the overhead structure.

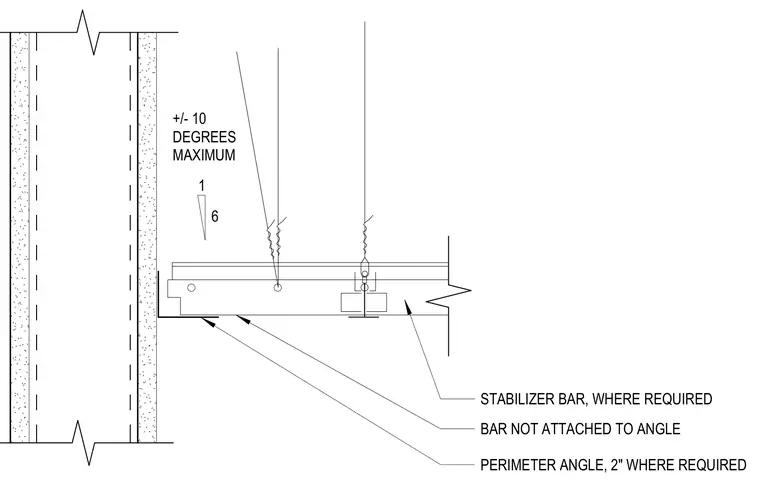

1 6 +/- 10 DEGREES MAXIMUM PERIMETER ANGLE, 2" WHERE REQUIRED STABILIZER BAR, WHERE REQUIRED BAR NOT ATTACHED TO ANGLE
