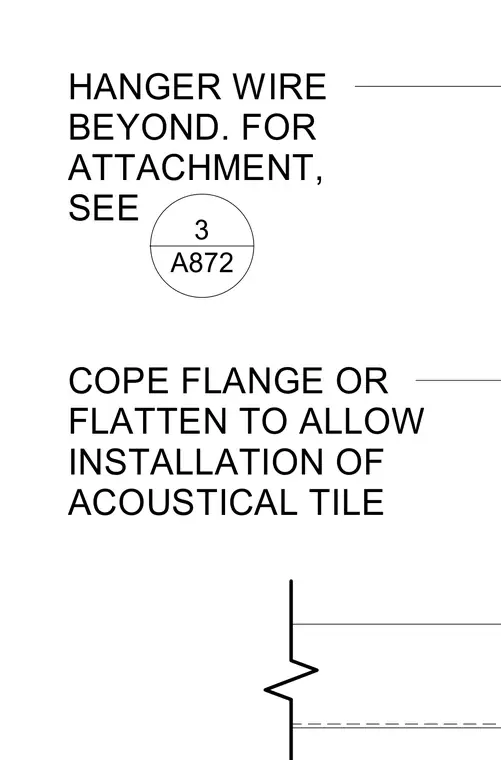

A structural channel compression strut is detailed with a hanger wire located beyond the assembly, referencing detail 3 on sheet A872 for attachment requirements. The channel flange is coped or flattened to allow proper installation of adjacent acoustical tile ceilings.
HANGER WIRE BEYOND. FOR ATTACHMENT, SEE COPE FLANGE OR FLATTEN TO ALLOW INSTALLATION OF ACOUSTICAL TILE A872 3
