Partial height metal stud partition configurations include corner intersections and base plate connections. A 4x4 by 1/4 inch hollow structural section tube steel column is anchored by a 7 by 8 by 1/2 inch thick base plate utilizing four 1/2 inch diameter Simpson Strong-Bolt anchors with a 2.75 inch minimum embedment set over non-shrink grout. Six-inch metal studs frame the partition, tied with intermittent blocking and metal backing straps screwed to each stud. Lateral bridging is spaced throughout the wall height, and straps are provided on both sides of studs where gypsum board occurs on one side only.

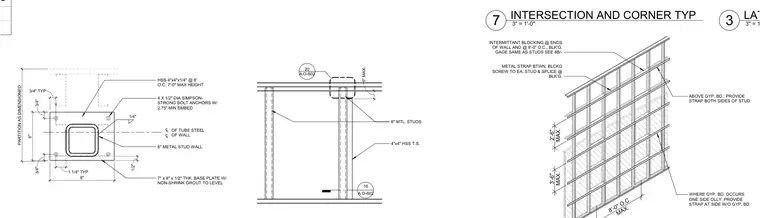

ALLOWABLE LOADS ON BACKING METAL STRAP BTWN. BLCKG SCREW TO EA. STUD & SPLICE @ BLK'G. INTERMITTANT BLOCKING @ ENDS OF WALL AND @ 8'-0" O.C., BLK'G. GAGE SAME AS STUDS SEE 8B/- ABOVE GYP. BD.: PROVIDE STRAP BOTH SIDES OF STUD WHERE GYP. BD. OCCURS ONE SIDE OLLY: PROVIDE STRAP AT SIDE W/O GYP. BD. 2'-6" MAX. 3'-6" MAX. 8'-0" O.C. MAX. 4"x4" HSS T.S. 6" MTL. STUDS 6" MAX. A.O-602 20 16 A.O-602 HSS 4"x4"x1/4" @ 8' O.C. 7'-0" MAX HEIGHT 3/4" TYP PARTITION AS DIMENSIONED 6" 3/4" 3/4" 8" 1 1/4" TYP OF TUBE STEEL OF WALL 6" METAL STUD WALL 7" x 8" x 1/2" THK. BASE PLATE W/ NON-SHRINK GROUT TO LEVEL 1/4" 4 X 1/2" DIA SIMPSON- STRONG BOLT ANCHORS W/ 2.75" MIN EMBED 1/2" 3" = 1'-0" 3 LATERAL BRIDGING TYP 3" = 1'-0" 7 INTERSECTION AND CORNER TYP
